IP/PoE devices have been widely used in the surveillance industry for many years. Besides core products such as cameras and DVRs/NVRs, many of Honfu's customers are system installers and integrators who have reported a lack of specific complementary solutions in the current market. Based on this feedback, we have developed several accessory solutions to improve installation speed, cost-effectiveness, and stability. The products currently available are as follows…
PoE Products

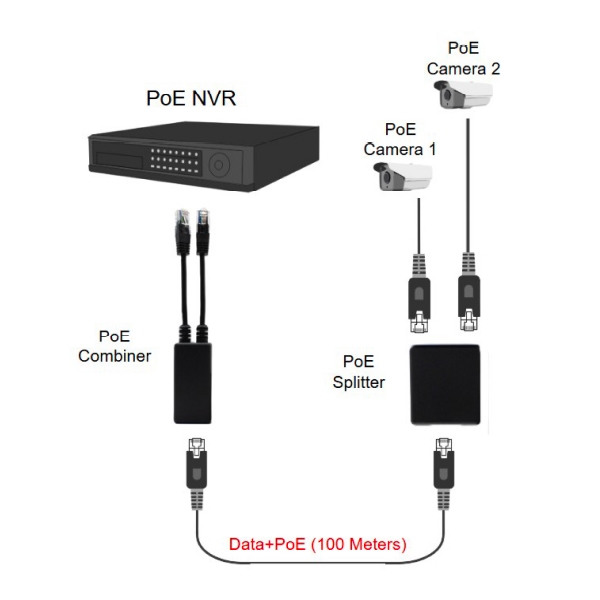

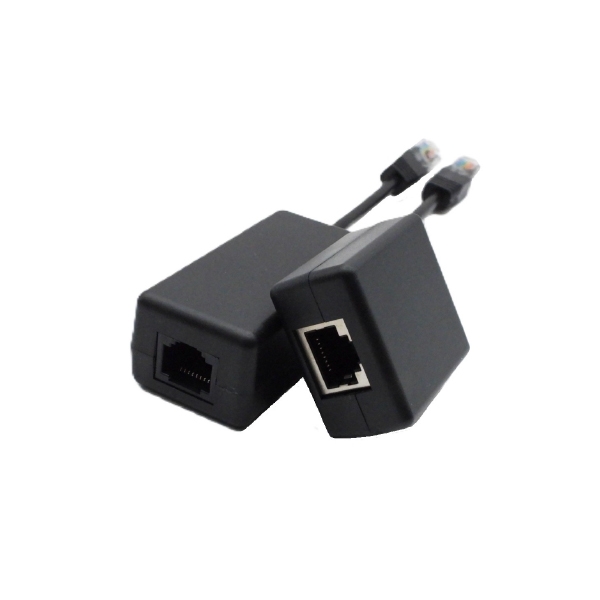

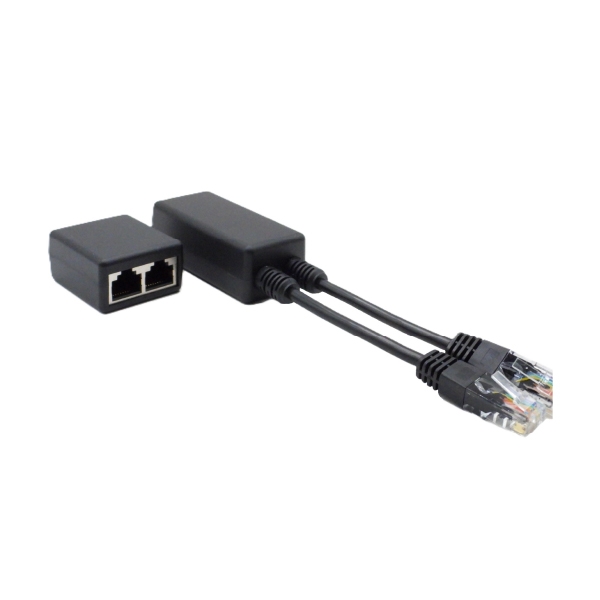

HFP2X1
1 to 2 PoE combiner and splitter
- Utilizes a single Cat5e/6 cable to connect two PoE cameras to a PoE switch or NVR.
- Provides power delivery of up to 30 watts to each port by 802.3af/at standards.
- Requires no additional power source.
- Effortless and ready-to-use design that requires minimal configuration.
- Significantly reduces both installation costs and time.

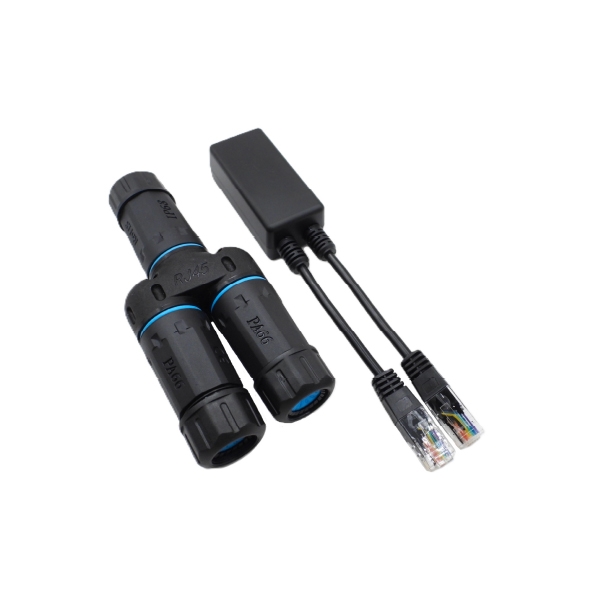

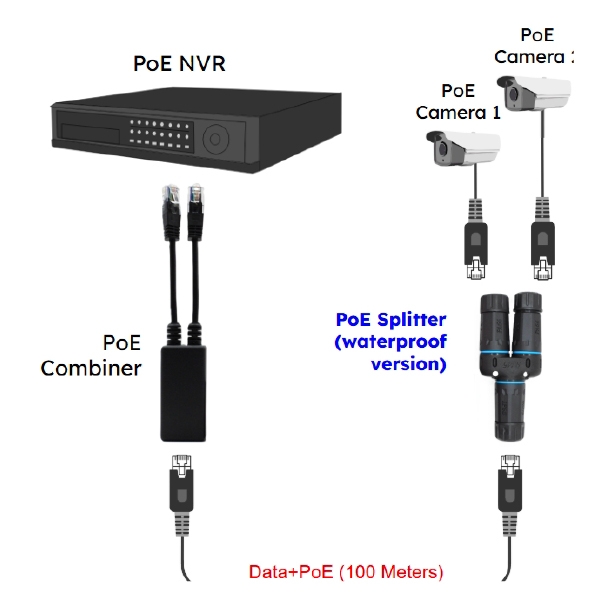

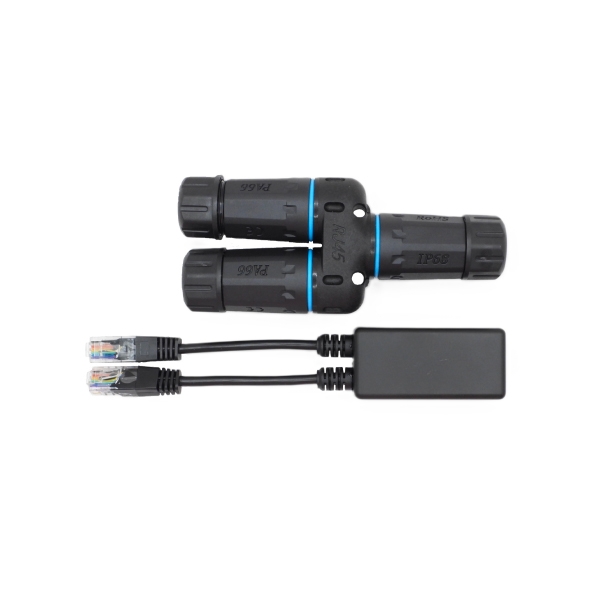

HFP2X1W
1 to 2 PoE combiner with waterproof splitter
- Utilizes a single Cat5e/6 cable to connect two PoE cameras to a PoE switch or NVR.
- Provides power delivery of up to 30 watts to each port by 802.3af/at standards.
- Requires no additional power source.
- Effortless and ready-to-use design that requires minimal configuration.
- Significantly reduces both installation costs and time.
- Splitter has an IP68 rating for outdoor use; combiner does not.

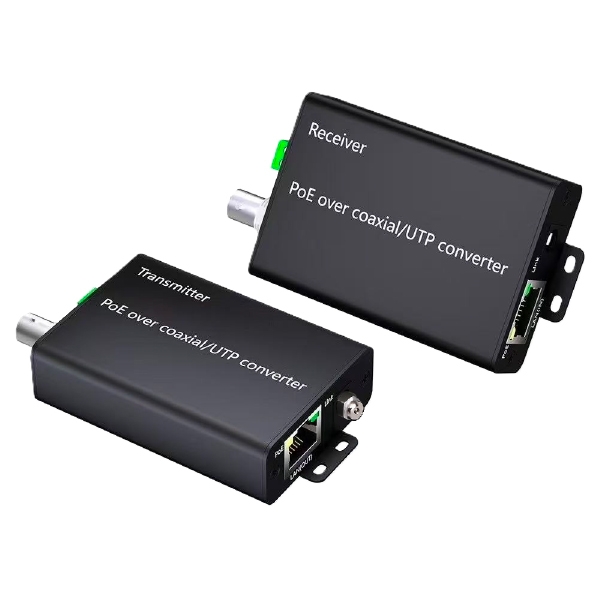

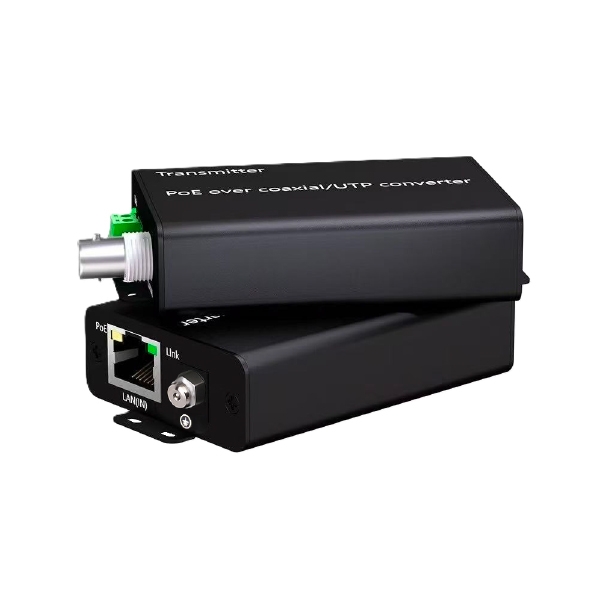

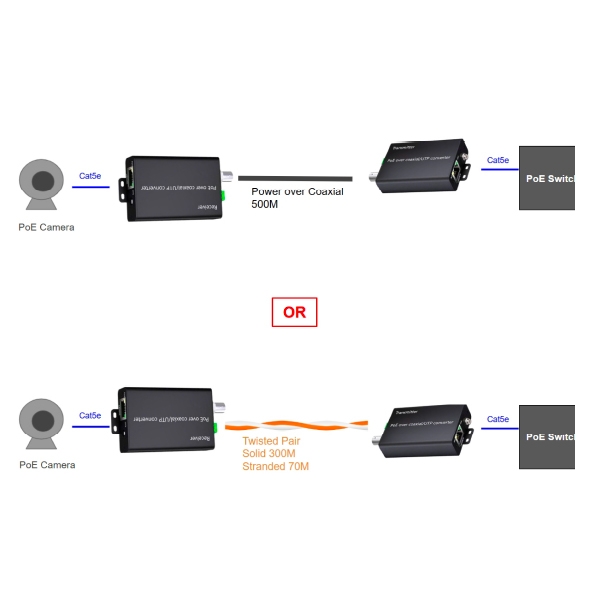

HFCE1X1
PoE over coax / twisted pair extender
- Coaxial or twisted pair transmission of high-definition video signals.
- Coaxial cable maximum transmission distance up to 500 meters.
- Twisted Pair cable maximum transmission distance up to 300 meters (solid) and 70 meters (stranded).
- Support for IGMP, two-way multicast.
- Plug-and-play ad hoc network.
- 100 Mbps physical layer bandwidth and max. 94 Mbps TCP rate.

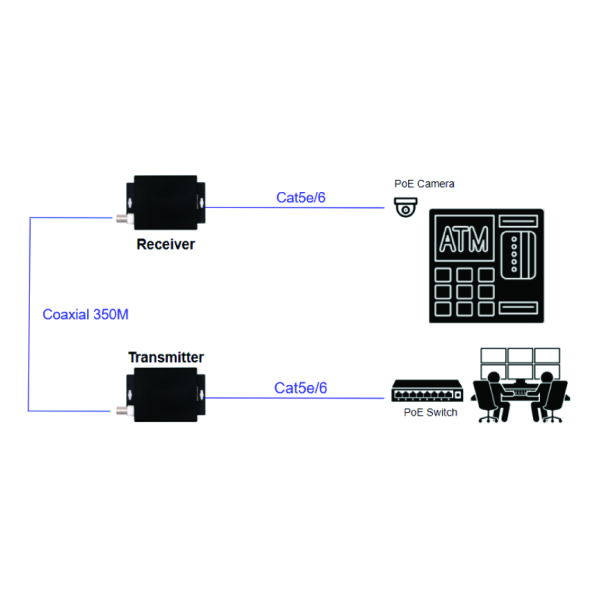

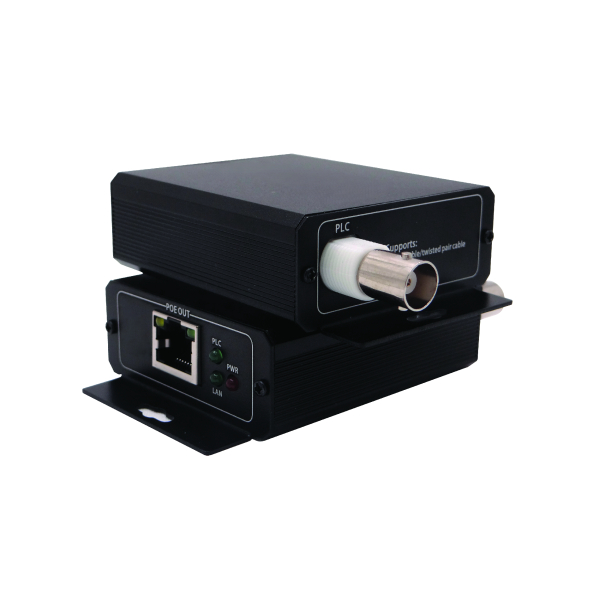

HFCE1X1-E
PoE over coax extender
- Transmits high-speed network data over existing coaxial cables.
- Supports 100Mbps up to 350m and 10Mbps up to 1km.
- Reduces costs by reusing coaxial cable.
- Compatible with IEEE 802.3af/at for power delivery.
- Simple Plug-and-Play setup with zero configuration required.
- Integrated 4KV lightning protection for maximum hardware safety.

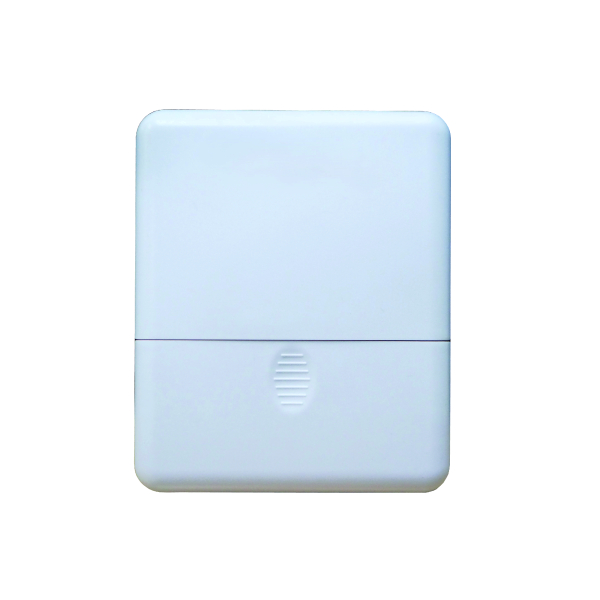

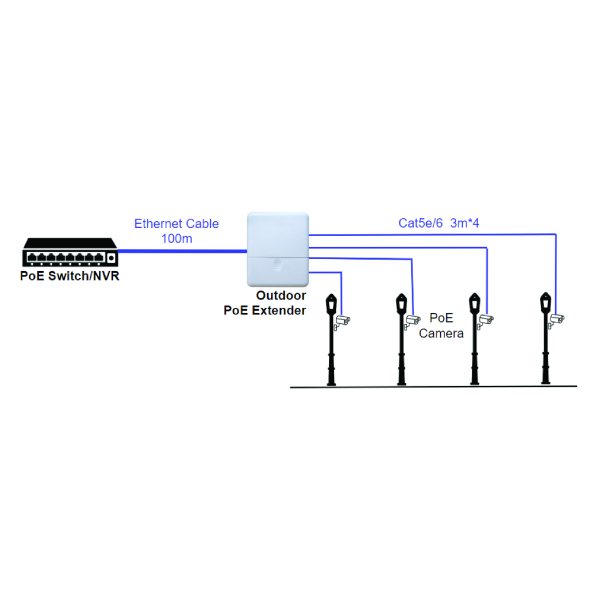

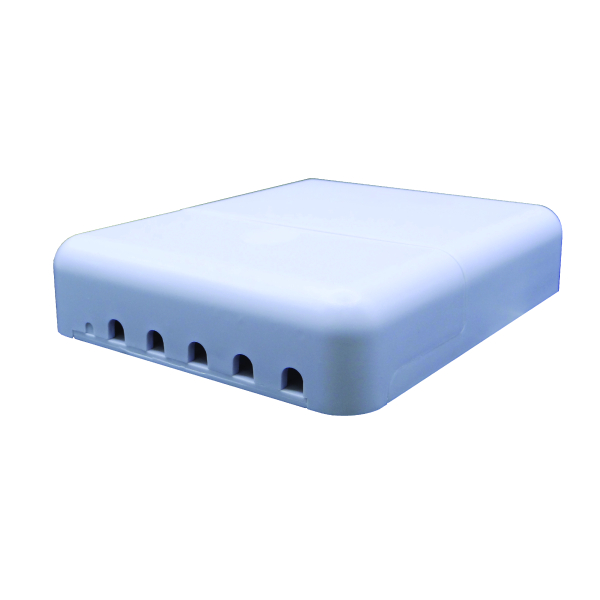

HFOE4X1
1 to 4 Outdoor PoE extender
- Transmits 4 video signals simultaneously.
- Supports high-speed 10/100/1000Mbps RJ45 interface.
- Extends data and power transmission up to 100m.
- Compliant with IEEE 802.3af/at standards (60W max).
- Built-in 6KV lightning protection for maximum equipment safety.

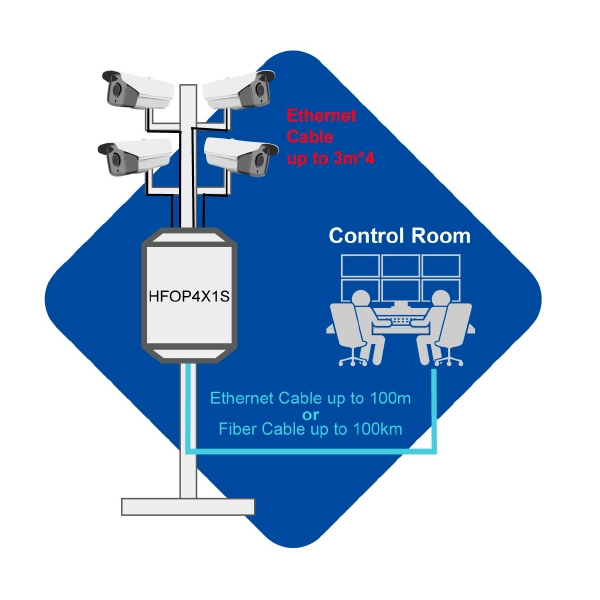

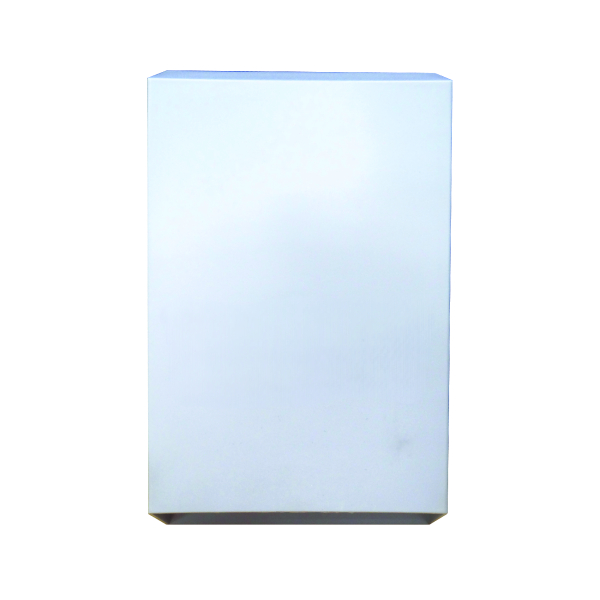

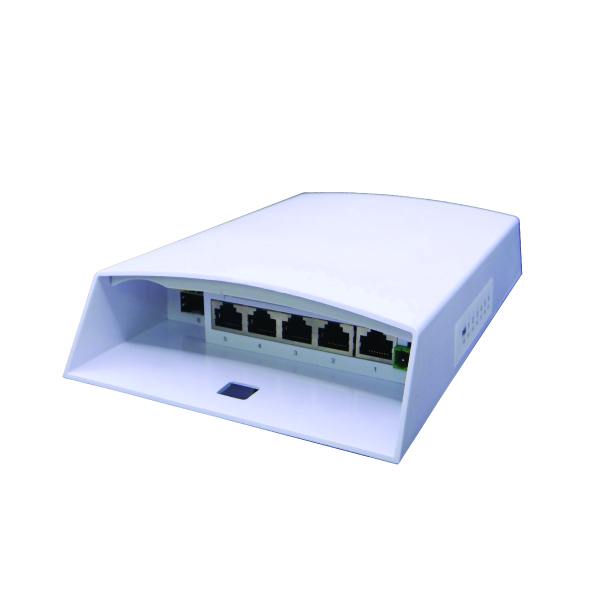

HFOP4X1S
1 to 4 outdoor PoE switch
- Multiple Gigabit Ports with SFP Uplink.
- Supports IEEE 802.3af/at PoE standard, delivering up to 30W per port.
- Accepts DC 48–52V power input or PoE IEEE 802.3bt input up to 60W.
- With IP65 protection, it is built to withstand harsh environments such as outdoor or factory use.
- Reduced more than 50% on materials, and more terminal devices to apply.

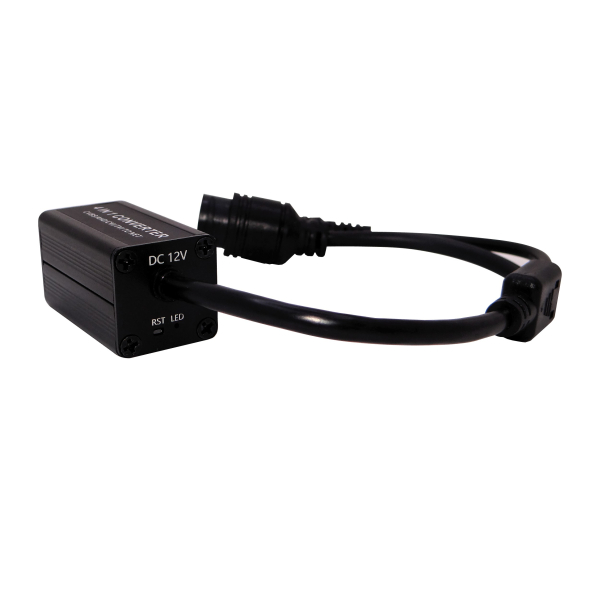

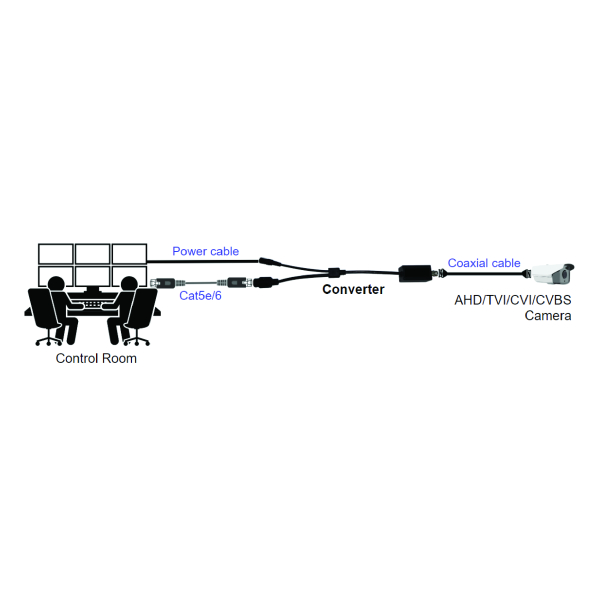

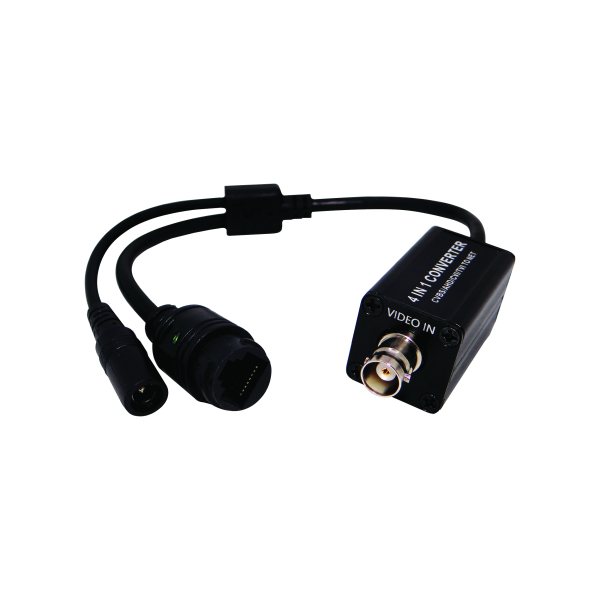

HFA4N1C
Analog 4-in-1 converter
- PAL/NTSC (AHD, TVI, CVI, and CVBS) signal input.
- Supports 2MP (1080p @ 30fps) full HD resolution.
- Utilizes H.264 and H.265 compression standards.
- Seamlessly bridges analog cameras to 10/100M TCP/IP networks.
- Highly efficient 1.5W power consumption on a 12V/1A input.
